New Loading ramp Loading Ramp with with electric tilting bridge - AZ RAMP - STAR- 20T-ZR-E. 20 ton capacity

Mobile loading ramp with Electric tilting bridge

Brand: AZ RAMP - Type: STAR- 20T-ZR-E

Load capacity: 20 000 Kg

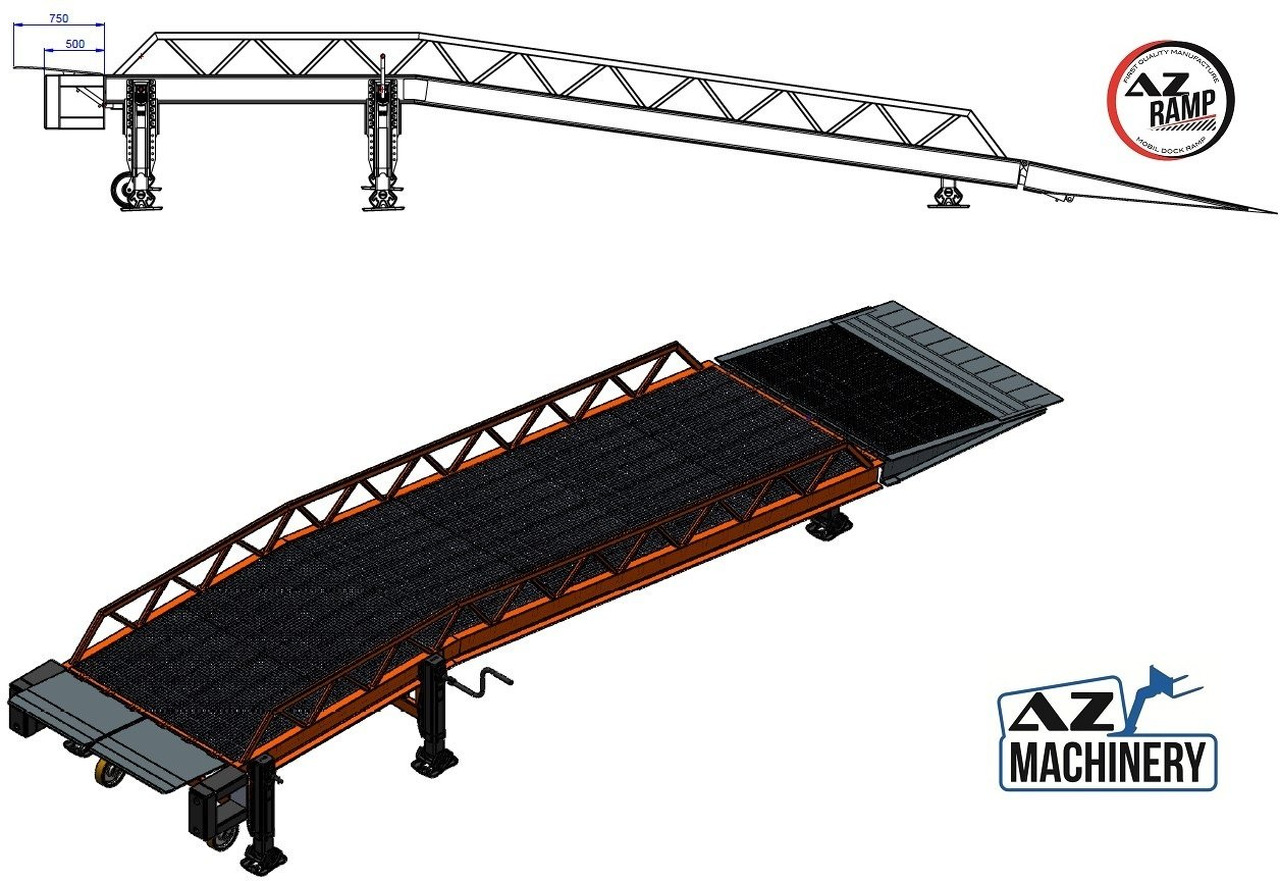

Dimensions: Total length deployed: 10.55 m

Overall Width: 2.07 m - Useful Width (Inside): 1.96 m

Length Inclined plane / Inclined part: 7.15 m

Length Flat-shaped horizontal: 3.31 m

Input tray length: 2.10 m - Output lip length: 0.74 m

Empty weight: 2,615 kg

Adjustable lifting height: Mini: 1.00 m - Max: 1.60 m

Slope: Min: 16.5% - Max: 22.37%

The + Product:

Dock Bumpers with Refuge zone of 500 mm

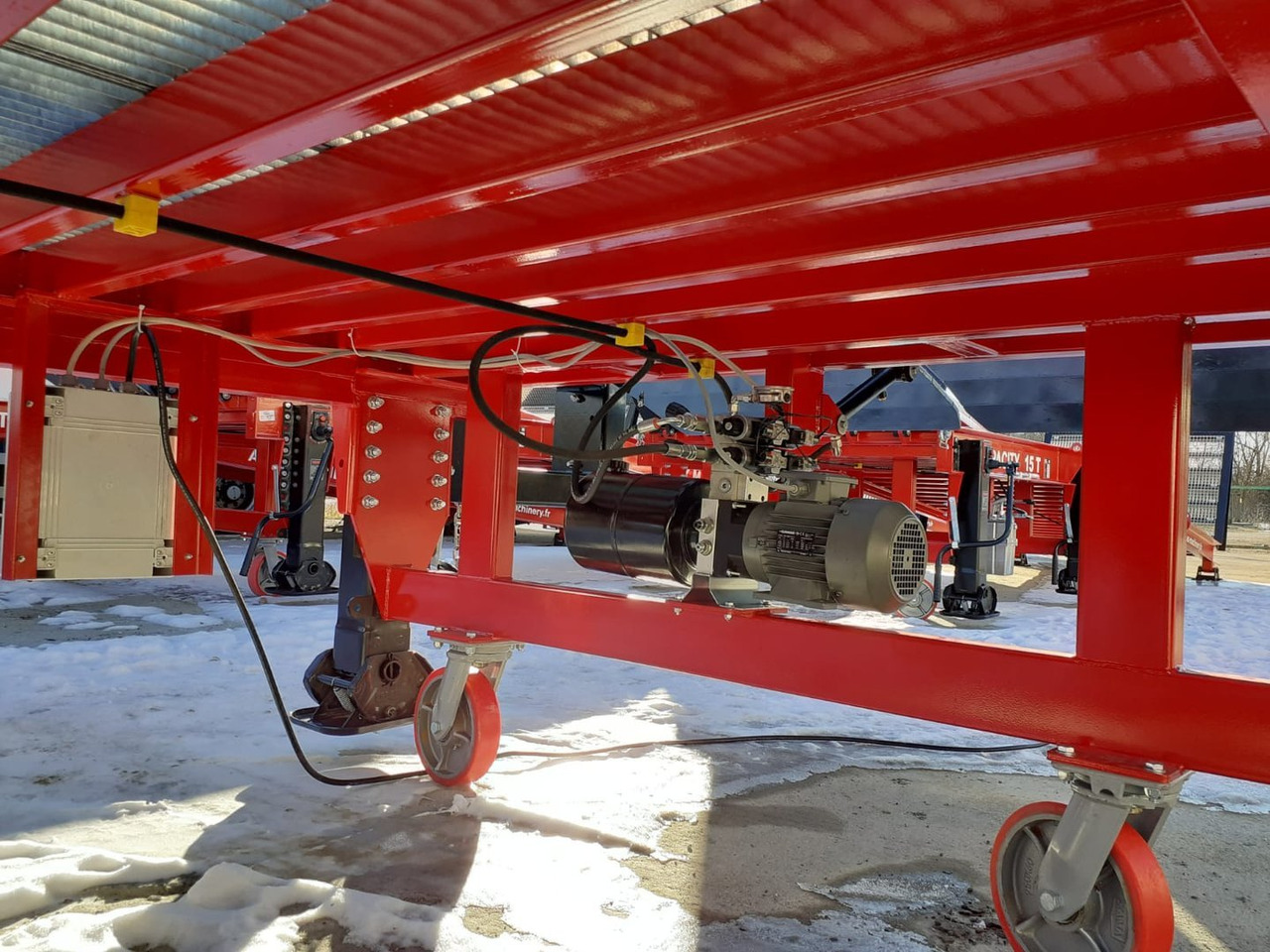

Inlet tray and outlet lips hydraulically folded by Electric motor.

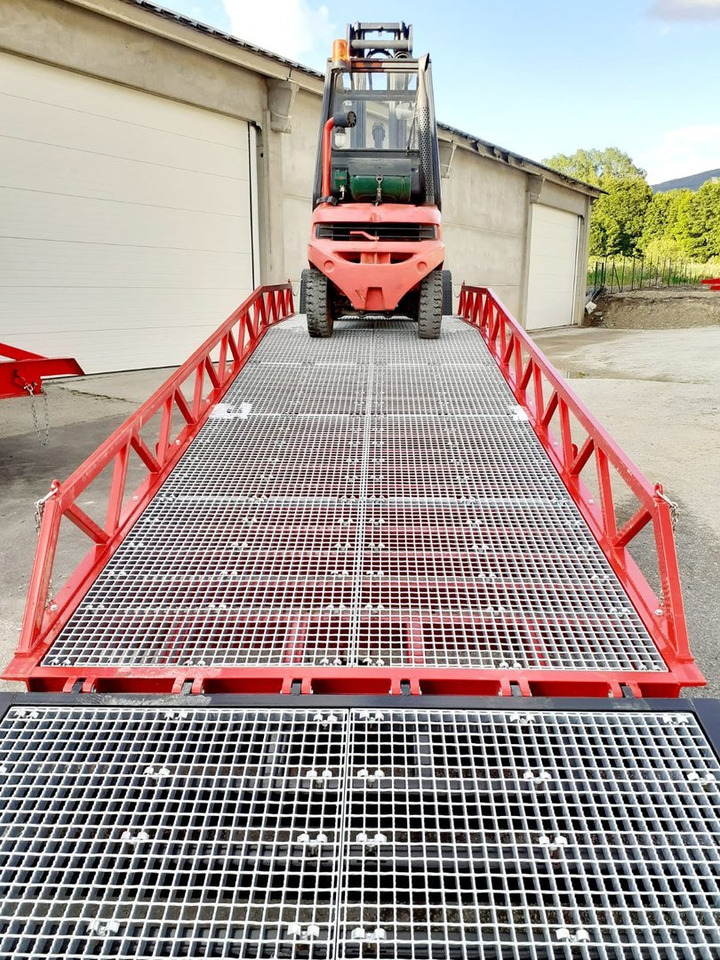

Descent and mounted wheels via hydraulic crank. Designed for use with 3 and 4 wheel forklift. 4 Support feet with adaptive heads Side safety rails height 21 cm, removable Anti-slip surface in hot galvanized grating 2 lashing chains included

Applications: The STAR model is very appreciated by logisticians, industrialists, it also makes it possible to answer certain constraints of the centers of formation driver according to the new RECO R.489. Passing tests of Categories 1 and 3.
