Leasing of 260°Rotation Mini Dumper Popullar Model in Markets

See similar

Published: 5d

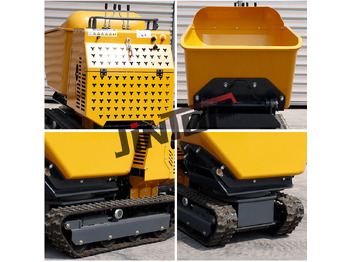

Leasing of 260°Rotation Mini Dumper Popullar Model in Markets 260°Rotation Mini Dumper Popullar Model in Markets: picture 1

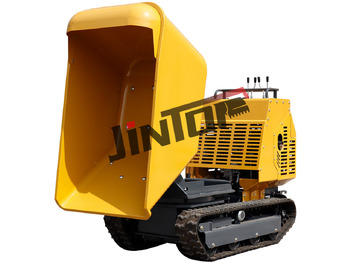

Leasing of 260°Rotation Mini Dumper Popullar Model in Markets 260°Rotation Mini Dumper Popullar Model in Markets: picture 2

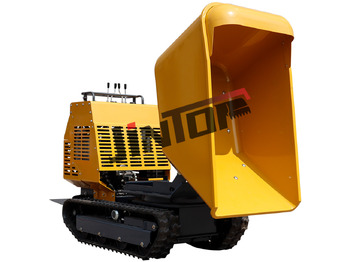

Leasing of 260°Rotation Mini Dumper Popullar Model in Markets 260°Rotation Mini Dumper Popullar Model in Markets: picture 3

Leasing of 260°Rotation Mini Dumper Popullar Model in Markets 260°Rotation Mini Dumper Popullar Model in Markets: picture 4

Published: 5d

Year of manufacture

2025

Location

China, Shandong Province, China

More information

EngineModel: Briggs&Stratton

EngineType: Single cylinder, OHV, 4-stroke, air cooling

displacement: 420CC

RatedPower: 13.5HP/3600rpm

FuelType: 92 #Gasoline

Fuel Tank capacity: 6.5L

Net weight: 850KG

Maximum load capacity: 1200KG

Body size :(Footboard not included): 2060*900*1400MM

Pedal machine size included: 2470*900*1400MM

Container size: 1400*800*600MM

Chassis width: 900MM

Maximum rotation Angle: 260°

Rotation mode: Hydraulic rotation

Tipping interval: 320mm

track width: 180MM

Track grounding length: 1000MM

Chassis groundclearance: 140MM

Rotation Angle Breaks through Tradition

Different from ordinary dump trucks (which only dump backward), it can achieve rotational dumping at any angle within a 260-degree range (such as rear-left, rear-right, side, etc.) without adjusting the vehicle position, adapting to narrow or complex sites.

Precise Dumping Control

Through hydraulic or electric rotating mechanisms combined with an electronic control system, it can accurately position the dumping direction, avoiding material spillage. It is suitable for scenarios with high requirements for dumping positions (such as trench backfilling and slope dumping).

Terrain Adaptability and Stability

All-terrain Driving Capability

Some models are equipped with four-wheel drive systems, high ground clearance, and non-slip tires, enabling stable driving on muddy and rugged roads, and even adapting to operations on slopes exceeding 15°, outperforming ordinary dump trucks.

Stability Design during Dumping

When rotating to dump, the chassis is equipped with hydraulic outriggers or a balancing system to prevent vehicle rollover and ensure operational safety.

Loading Efficiency and Multifunctionality

Large-capacity Hopper Design

The hopper volume is typically 5-15 cubic meters. Combined with a self-unloading hydraulic system, it can dump quickly (completing tilting in 10-15 seconds), suitable for large-scale material transportation.

Multi-scenario Attachment Adaptability

Some models can be equipped with sealed hoppers (dust prevention), bucket-type hoppers (with loading function), or weighing sensors (real-time load monitoring) to enhance operational flexibility.

Environmental Protection and Intelligent Upgrades

New Energy Drive Options

Electric or hybrid versions are gradually becoming popular, with zero emissions and low noise, suitable for urban environmental protection construction (such as municipal construction waste transportation).

Intelligent Control System

Integrating functions such as GPS positioning, dumping angle monitoring, and load warning, some models support remote control, reducing manual operation risks.
